Ultrasonic Welding Machine

MSP-JS20150, with 20KHz ultrasonic system in power output max to 15KW, which achieves the welding capacity to copper cable in size max to 120mm2. Machine is designed mostly for the welding of high-voltage cable.  Machine applies industrial PC panel to operate and set machine with MP Sonic specially developed ultrasonic control & management operation system, providing the solution to the complex requirement and demand of application in metal welding.

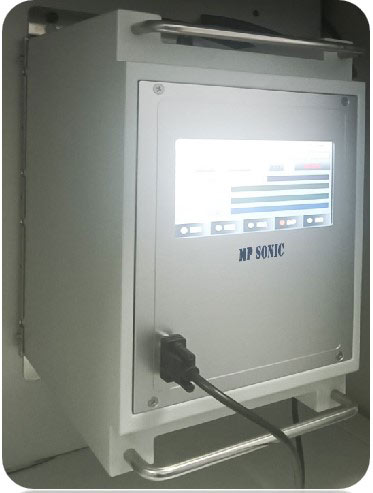

1. MP Sonic 15KW ultrasonic metal welding system, high welding ability in stable performance;

2. Machine manufacturing in high precision with multiple manufacturing process procedure from high glass material, ensure machine duration in stability and precision;

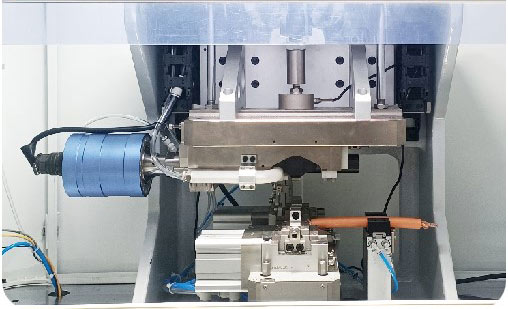

3. Welding motion  is Linear way guided in high precision (precision as high as 0.01mm);

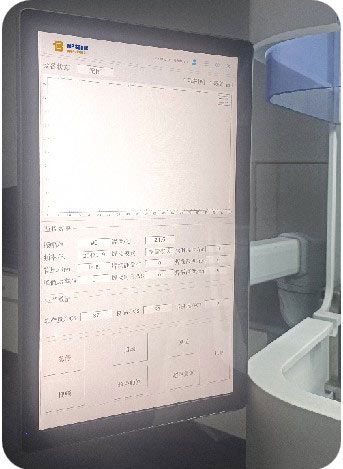

4.  Industrial Panel PC is equipped with machine for operation control, MP Sonic intelligent operation system for easy operation, meeting high requirement in management-quality management, production management, equipment management, etc.

1. Model: MSP-JS20150;

2. Power Source: 380V±10%, 3P, AC, 50/60Hz;

3. Air Source: 0.6~0.8MPa;

4. Ultrasonic Frequency: 20KHz;

5. Power Output: max to KW;

6. Air: 0.6~0.8MPa;

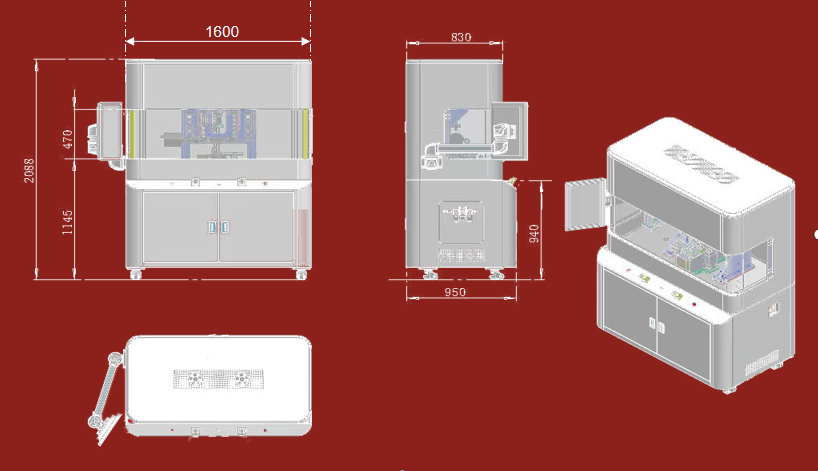

7.Dimension: 1600*950*2088(mm).
