Ultrasonic metal welding technology normally applied for cable wiring, harness welding, splicing, metal tube sealing, etc.
Machine applies 20KHz~60KHz ultrasonic system to work on metal work-pieces case the friction in high requency between work-pieces at contacting area to realize welding. Ultrasonic welding is workable to different machine, such as aluminum, copper, nickel, iron, silver, gold, etc.
Ultrasonic metal welding is in advantages of efficiency operation, no material consumption, non-resistance generated, no change to the characteristics to material, etc. It is widely applied for the production of electronics, automotive parts, battery, etc.

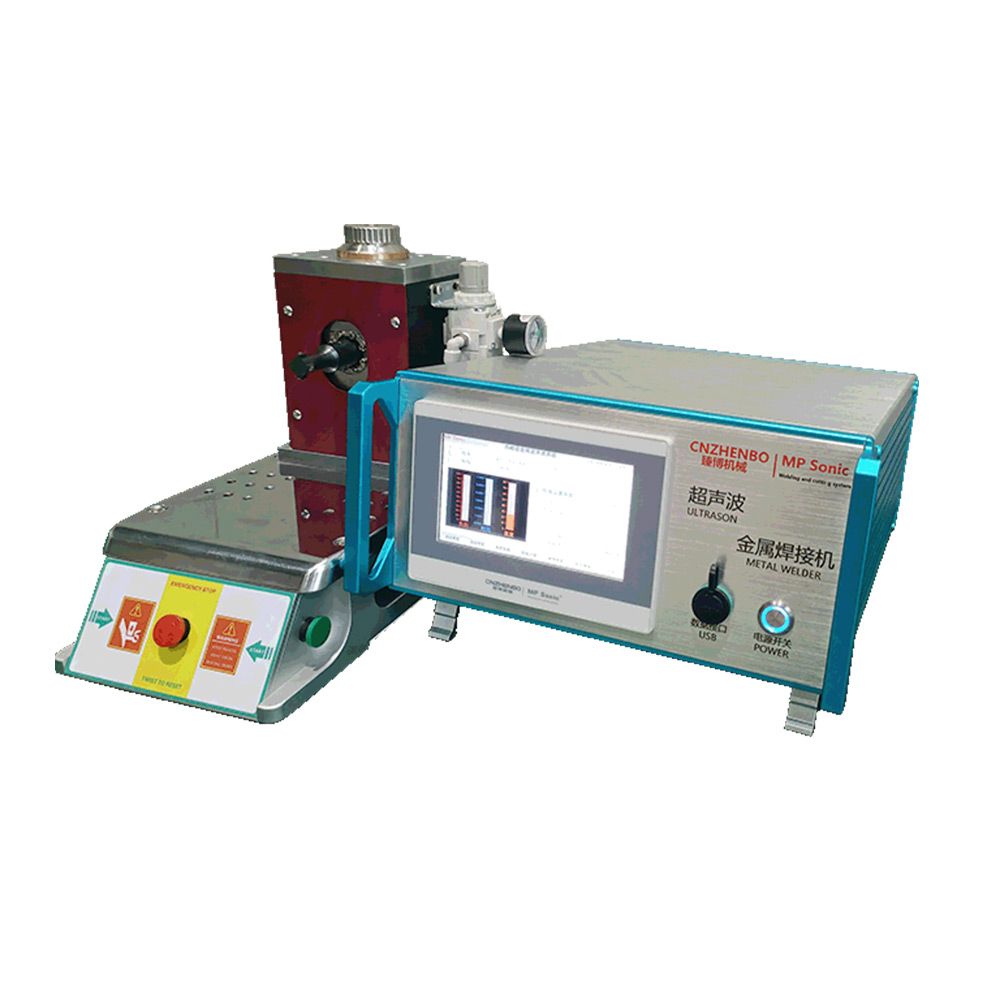

MSP-JS4010, designed and manufactured for metal pieces welding, applies 40KHz ultrasonic system for think metal sheet or metal cable in small size. Machine applies MP Sonic system made in Korea in anti-resonance design for strong welding ability in stability under high pressure loading. Machine applies pneumatic to force welding. The motion is guided by linear way in accuracy. The welding depth is adjustable basing on requirement. Machine construction is in high precision and stability.
Ultrasonic welding machine can be distinguished into ultrasonic plastic welder and ultrasonic metal welder.Ultrasonic plastic welder means applied to joint plastic parts in different thermoplastic material, while ultrasonic metal welders means applied to joint metal parts, especially for metal wire/cable and line terminal, etc.

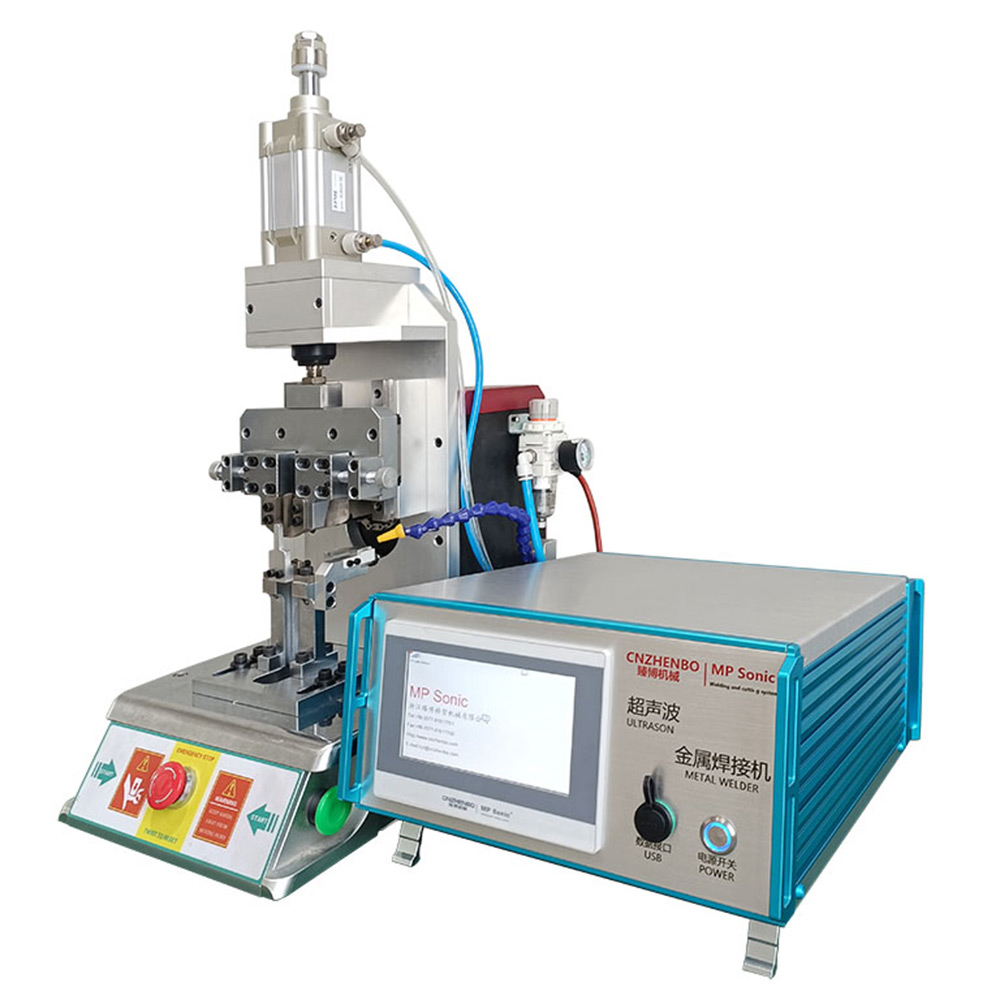

MPS-JS3200S is a ultrasonic welding machine designed and made by CNZHENBO, MP Sonic.China, for the splicing of electrical cable. Machine applies MP Sonic 20KHz ultrasonic metal welding system in 3200W to realize the harness welding. The ultrasonic power output is strong, which can be applied for cable max to 80mm2.
MSP-JS20150, with 20KHz ultrasonic system in power output max to 15KW, which achieves the welding capacity to copper cable in size max to 120mm2.
